FSP3127

150KHZ 500MA STEP DOWN VOLTAGE REGULATOR

FSP3127 Features

* z 3.3V, 5V, 12V, and adjustable output versions z Adjustable version output voltage range, 1.2V to 37V ±4% max over line and load conditions z Available in 8-pin surface mount and DIP-8 package z Guaranteed 0.5A output current z Input voltage range up to 40V z Requires only 4 external components z 1

FSP3127 General Description

The FSP3127 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 0.5A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an .

FSP3127 Datasheet (285.49 KB)

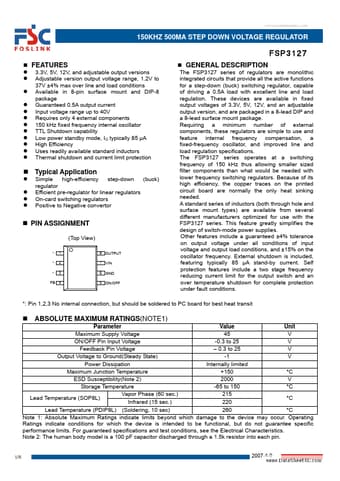

Preview of FSP3127 PDF

Datasheet Details

Part number:

FSP3127

Manufacturer:

FOSLINK SEMICONDUCTOR

File Size:

285.49 KB

Description:

150khz 500ma step down voltage regulator.
