FSP3124 Datasheet - FOSLINK SEMICONDUCTOR

FSP3124 - 150KHZ 3A PWM BUCK DC/DC CONVERTER

* z z z APPLICATIONS Simple High-efficiency step-down regulator On-card switching regulators Positive to negative converter The FSP3124 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor component.

D

FSP3124 Features

* Output voltage: 3.3V, 5.0V, 12V, and adjustable output version Adjustable version output voltage range:1.23V to 18V±4% 150KHz±15% fixed switching frequency Voltage mode non-synchronous PWM control Thermal-shutdown and current-limit protection ON/OFF shutdown control input Operating voltage can be up

FSP3124_FOSLINKSEMICONDUCTOR.pdf

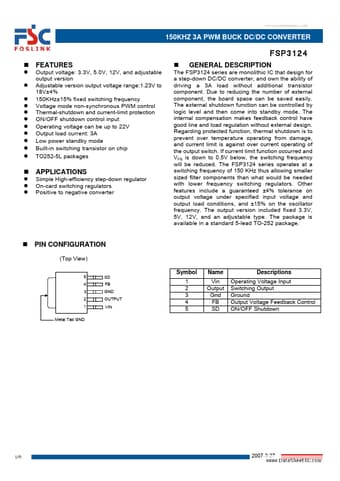

Preview of FSP3124 PDF
FSP3124 Datasheet Preview Page 2 FSP3124 Datasheet Preview Page 3

Datasheet Details

Part number:

FSP3124

Manufacturer:

FOSLINK SEMICONDUCTOR

File Size:

305.58 KB

Description:

150khz 3a pwm buck dc/dc converter.
