Part number: FSP3130
Manufacturer: FOSLINK SEMICONDUCTOR
File Size: 254.90KB
Download: 📄 Datasheet

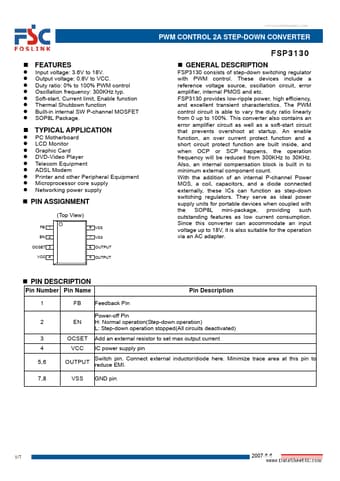

Description: PWM CONTROL 2A STEP-DOWN CONVERTER
z z z z z z z z z z z z z z z z z Input voltage: 3.6V to 18V. Output voltage: 0.8V to VCC. Duty ratio: 0% to 100% PWM control Oscillation frequency: 300KHz typ. Soft-star.
FSP3130 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. FSP3130 provides low-ripple power, high efficiency, and excellent trans.
Image gallery
