2M218 Datasheet - FRANK ELECTRONIC

2M218 Magnetron

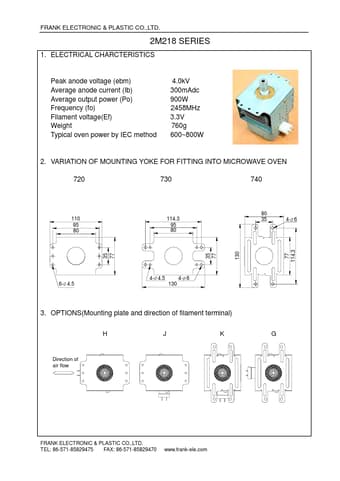

FRANK ELECTRONIC & PLASTIC CO.,LTD. 2M218 SERIES 1. ELECTRICAL CHARCTERISTICS Peak anode voltage (ebm) Average anode current (Ib) Average output power (Po) Frequency (fo) Filament voltage(Ef) Weight Typical oven power by IEC method 4.0kV 300mAdc 900W 2458MHz 3.3V 760g 600~800W 2. VARIATION OF MOUNTING YOKE FOR FITTING INTO MICROWAVE OVEN 720 730 740 80 110 114.3 35 4- 6 95 95 80 80 35 77 35 77 130 77 114.3 6- 4.5 4- 4.5 4- 6 130 3. OPTIONS(Mounting plate and direction of filamen.

2M218 Datasheet (56.21 KB)
