2M22Z, 2M20Z Datasheet - Taiwan Semiconductor

2M22Z Glass Passivated Junction Silicon Zener Diodes

AEC-Q101 qualified Green compound Document Number: DS_D1409044 Version: M15 CREAT BY ART RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) Device (Notes 1) Nominal Zener Voltage (Notes 2) VZ @ IZT Test Current IZT Maximum Zener Impedance (Notes 3) ZZT @ IZT ZZK @ IZK IZ.

2M22Z Features

* - Glass passivated chip junction - Typical IR less than 1μA - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition MECHANICAL DATA Case: DO-204AC (DO-15) Molding compound, UL flammability classification rating 94V-0 Part N

2M20Z-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 2M22Z, 2M20Z. Please refer to the document for exact specifications by model.

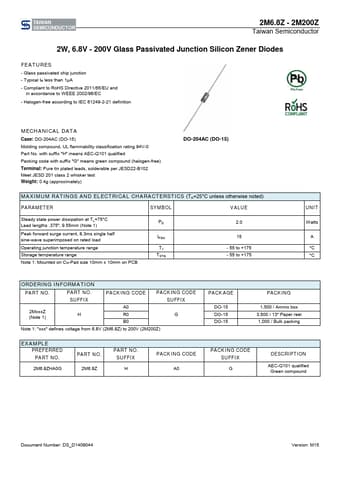

2M22Z Datasheet Preview Page 2 2M22Z Datasheet Preview Page 3

Datasheet Details

Part number:

2M22Z, 2M20Z

Manufacturer:

Taiwan Semiconductor

File Size:

204.63 KB

Description:

Glass passivated junction silicon zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 2M22Z, 2M20Z.
Please refer to the document for exact specifications by model.
