2M214-21GKH Continuous Wave Magnetron

: Continuous Wave Magnetron, 2450MHz, Fixed Frequency 1. Absolute Maximum Ratings : Filament Voltage Pre-heating Time Average Anode Current Peak Anode Current Peak Anode Voltage Average Anode Input Load VSWR (continuous) Anode Core Temperature Filter Case Temperature Antenna Temperature Storage Te.

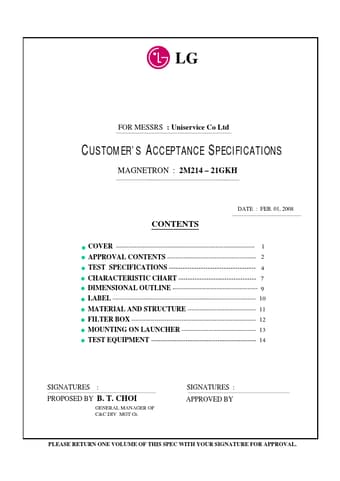

LG FOR MESSRS : Uniservice Co Ltd CUSTOMER’ S ACCEPTANCE SPECIFICATIONS MAGNETRON : 2M214 21GKH CONTENTS DATE : FEB. 01, 2008 COVER - 1 APPROVAL CONTENTS .

2M214-21GKH Features

* Rev. No. 0 INSULATING DISTANCES IN THE FILTER BOX DIMENSIONS IN MILLIMETERS LG Electronics Inc. Page 11 2M214 MODEL MAGNETRON SPEC. Rev. No. 0 MOUNTING ON LAUNCHER DIMENSIONS IN MILLIMETERS NOTE : 1. This figure is without gasket. 2. Recommended structure of launcher NOTE : 1. Flatness of
