1N4933 - 1.0 Ampere Fast Recovery Rectifiers

1N4933 Description

1N4933-1N4937 Discrete POWER & Signal Technologies 1N4933 - 1N4937 .

1N4933 Features

* Low forward voltage drop.
* High surge current capability.
* High reliability.
* High current capability. DO-41 COLOR BAND DENOTES CATHODE 1.0 Ampere Fast Recovery Rectifiers 1.0 min (25.4) Dimensions in inches (mm) 0.205 (5.21) 0.160 (4.06) 0.107 (2.72) 0.080 (2

📥 Download Datasheet

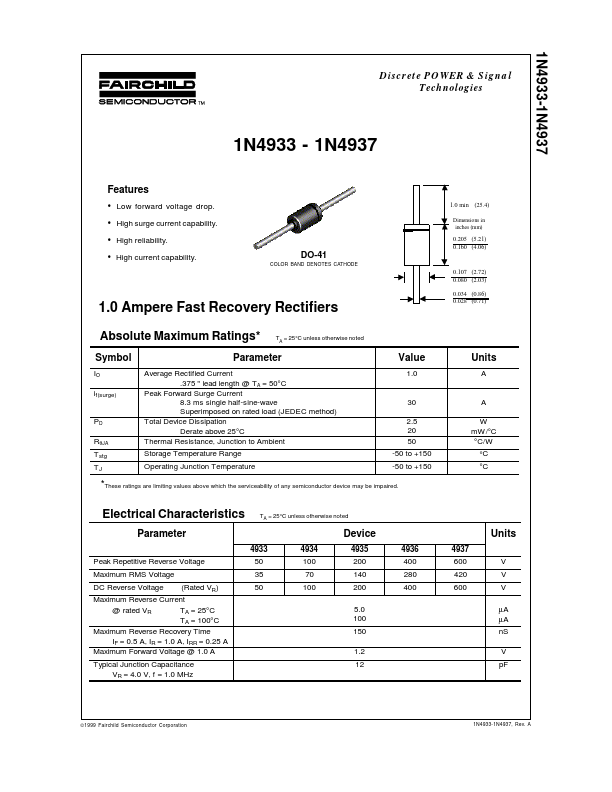

Preview of 1N4933 PDF

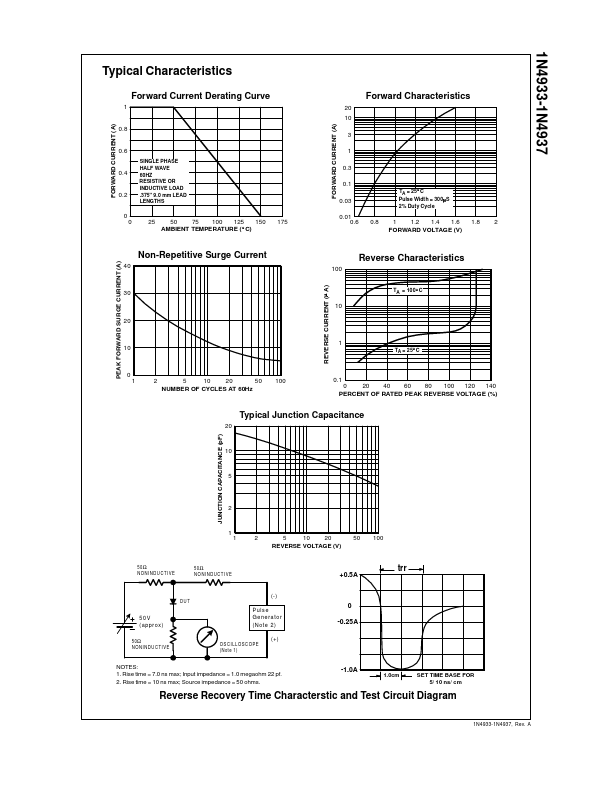

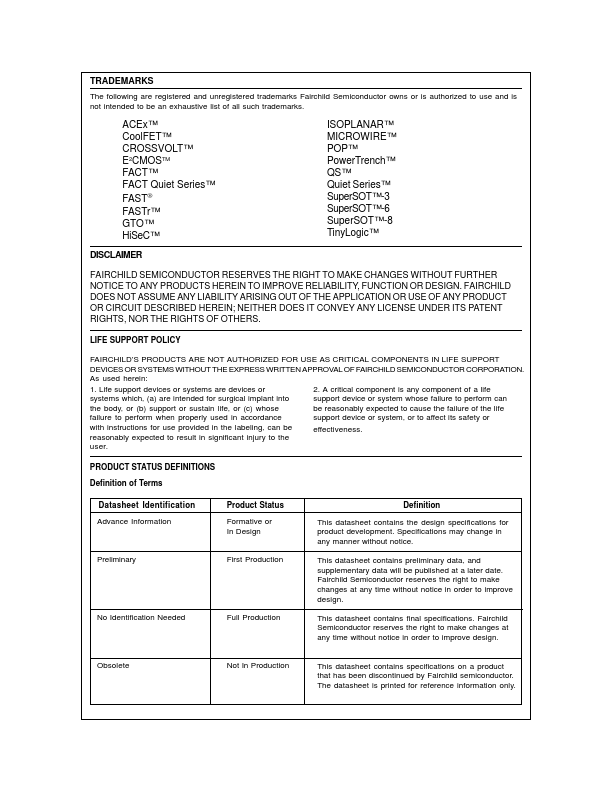

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4933
Manufacturer
Fairchild Semiconductor
File Size
35.27 KB
Datasheet
1N4933-FairchildSemiconductor.pdf
Description
1.0 Ampere Fast Recovery Rectifiers
