1N4934, 1N4933 - 1.0 Ampere Fast Recovery Rectifiers

1N4934 Description

1N4933-1N4937 Discrete POWER & Signal Technologies 1N4933 - 1N4937 .

1N4934 Features

* Low forward voltage drop.
* High surge current capability.
* High reliability.
* High current capability. DO-41 COLOR BAND DENOTES CATHODE 1.0 Ampere Fast Recovery Rectifiers 1.0 min (25.4) Dimensions in inches (mm) 0.205 (5.21) 0.160 (4.06) 0.107 (2.72) 0.080 (2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4934, 1N4933. Please refer to the document for exact specifications by model.

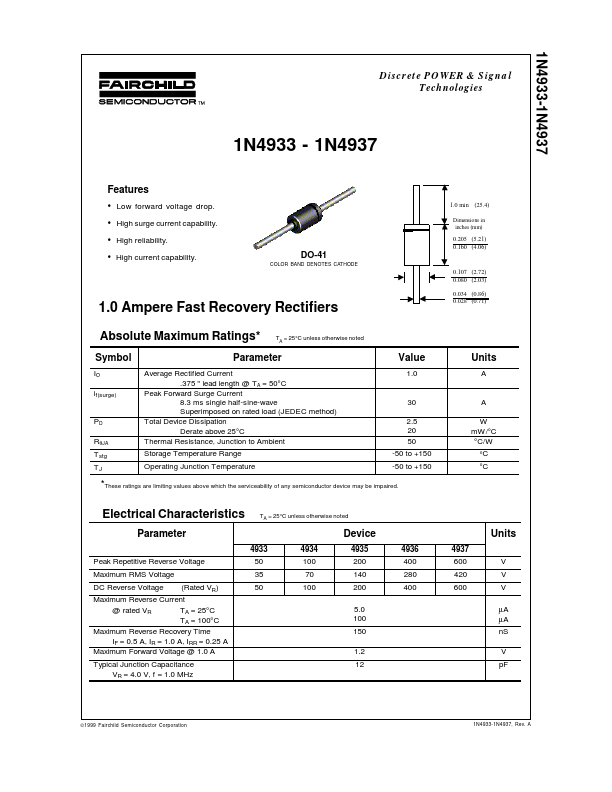

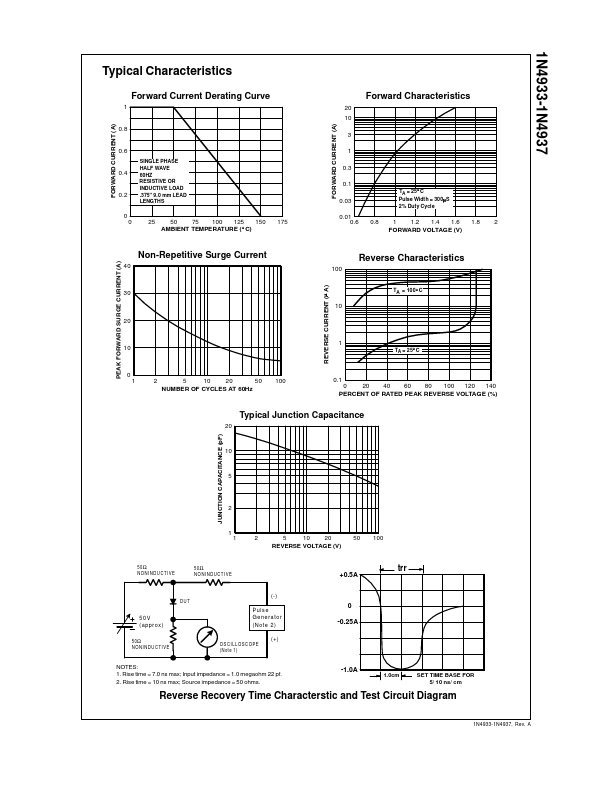

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4934, 1N4933
Manufacturer
Fairchild Semiconductor
File Size
35.27 KB
Datasheet
1N4933-FairchildSemiconductor.pdf
Description
1.0 Ampere Fast Recovery Rectifiers
Note
This datasheet PDF includes multiple part numbers: 1N4934, 1N4933.
Please refer to the document for exact specifications by model.
