2SC5200 - NPN Epitaxial Silicon Transistor

Datasheet Summary

Features

High Current Capability: IC = 17A.
High Power Dissipation : 150watts.
High Frequency : 30MHz.
High Voltage : VCEO=250V.
Wide S. O. A for reliable operation.
Excellent Gain Linearity for low THD.
Complement to 2SA1943/FJL4215.
Thermal and electrical Spice models are available.
Same transistor is also available in: -- TO3P package, 2SC5242/FJA4313 : 130 watts -- TO220 package, FJP5200 : 80 watts -- TO220F packag.

Fairchild Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	2SC5200
Manufacturer	Fairchild Semiconductor
File Size	430.09 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	2SC5200 Datasheet

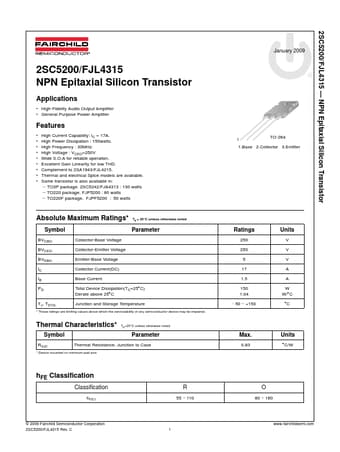

Additional preview pages of the 2SC5200 datasheet.

📁 Similar Datasheet

2SC5200 - NPN TRANSISTOR (Toshiba Semiconductor)
2SC5200 - NPN EPITAXIAL SILICON TRANSISTOR (UTC)
2SC5200 - 150 Watt Silicon NPN Power Transistors (Thinki Semiconductor)
2SC5200 - NPN Transistor (ON Semiconductor)
2SC5200 - NPN Transistor (STMicroelectronics)
2SC5200 - NPN Transistor (INCHANGE)
2SC5200A - Silicon NPN Transistor (JILIN SINO)
2SC5200B - Silicon NPN Transistor (JILIN SINO)
2SC5200H - NPN Transistor (INCHANGE)
2SC5200N - NPN Transistor (Toshiba)

Other Datasheets by Fairchild Semiconductor

2SC5242 - NPN Epitaxial Silicon Transistor
2SC33725 - NPN Epitaxial Silicon Transistor
2SC3503 - NPN Epitaxial Silicon Transistor

Full PDF Text Transcription

Click to expand full text

2SC5200/FJL4315 NPN Epitaxial Silicon Transistor Applications • High-Fidelity Audio Output Amplifier • General Purpose Power Amplifier Features • High Current Capability: IC = 17A. • High Power Dissipation : 150watts. • High Frequency : 30MHz. • High Voltage : VCEO=250V • Wide S.O.A for reliable operation. • Excellent Gain Linearity for low THD. • Complement to 2SA1943/FJL4215. • Thermal and electrical Spice models are available.
