4435BZ Datasheet - Fairchild Semiconductor

4435BZ, FDS4435BZ

FDS4435BZ P-Channel PowerTrench® MOSFET www.DataSheet4U.com June 2007 FDS4435BZ P-Channel PowerTrench® MOSFET -30V, -8.8A, 20mΩ .
This P-Channel MOSFET is produced ® using Fairchild Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize th.

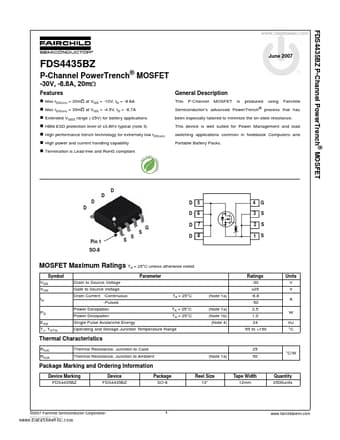

 datasheet Preview Page 1 from Datasheet4u.com

4435BZ_FairchildSemiconductor.pdf

Preview of 4435BZ PDF

Datasheet Details

Part number:

4435BZ

Manufacturer:

Fairchild Semiconductor

File Size:

372.15 KB

Description:

FDS4435BZ

Features

* Max rDS(on) = 20mΩ at VGS = -10V, ID = -8.8A
* Max rDS(on) = 35mΩ at VGS = -4.5V, ID = -6.7A

Applications

* HBM ESD protection level of ±3.8KV typical (note 3)
* High performance trench technology for extremely low rDS(on)
* High power and current handling capability
