4438BGM, N-Channel 30V MOSFET

4438BGM-VB 4438BGM-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.008 at VGS= 10 V 0.011 at .

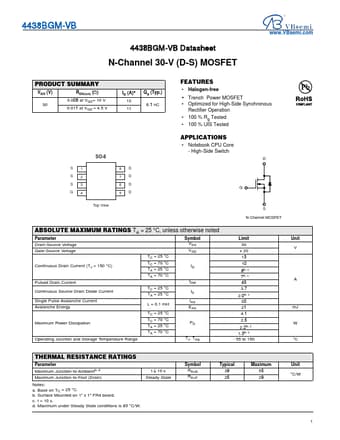

datasheet Preview Page 1 from Datasheet4u.com

4438BGM-VBsemi.pdf

4438BGM Datasheet Preview — Preview of 4438BGM PDF

Datasheet Details

Part number:

4438BGM

Manufacturer:

VBsemi

File Size:

199.08 KB

Description:

N-Channel 30V MOSFET

Features

* Halogen-free
* Trench Power MOSFET
* Optimized for High-Side Synchronous Rectifier Operation
* 100 % Rg Tested

Applications

* Notebook CPU Core - High-Side Switch D G Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 VGS ± 20 V TC = 25 °C 13 Continuous Drain Current (TJ = 150 °C) TC =
