4N33M, 4N30M - General Purpose 6-Pin Photodarlington Optocoupler

4N33M Description

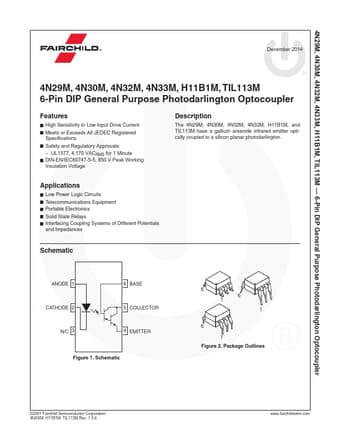

4N29M, 4N30M, 4N32M, 4N33M, H11B1M, TIL113M * 6-Pin DIP General Purpose Photodarlington Optocoupler December 2014 4N29M, 4N30M, 4N32M, 4N33M.
The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M, and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

4N33M Features

* High Sensitivity to Low Input Drive Current
* Meets or Exceeds All JEDEC Registered Specifications
* Safety and Regulatory Approvals:
* UL1577, 4,170 VACRMS for 1 Minute

4N33M Applications

* Low Power Logic Circuits
* Telecommunications Equipment
* Portable Electronics
* Solid State Relays
* Interfacing Coupling Systems of Different Potentials and Impedances Schematic ANODE 1 CATHODE 2 N/C 3 6 BASE 5 COLLECTOR 4 EMITTER Figure 1. Schematic 6 6 1 1 6 1 Figure 2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 4N33M, 4N30M. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
4N33M, 4N30M
Manufacturer
Fairchild Semiconductor
File Size
304.53 KB
Datasheet
4N30M-FairchildSemiconductor.pdf
Description
General Purpose 6-Pin Photodarlington Optocoupler
Note
This datasheet PDF includes multiple part numbers: 4N33M, 4N30M.
Please refer to the document for exact specifications by model.
