4N30M, General Purpose 6-Pin Photodarlington Optocoupler

4N29M, 4N30M, 4N32M, 4N33M, H11B1M, TIL113M * 6-Pin DIP General Purpose Photodarlington Optocoupler December 2014 4N29M, 4N30M, 4N32M, 4N33M.
The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M, and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

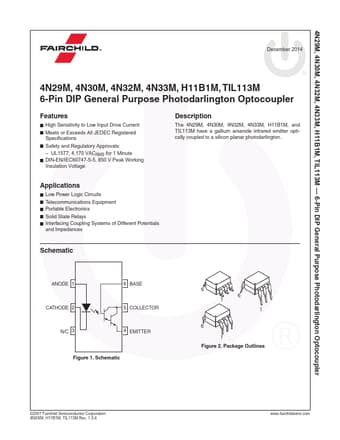

datasheet Preview Page 1 from Datasheet4u.com

4N30M-FairchildSemiconductor.pdf

4N30M Datasheet Preview — Preview of 4N30M PDF

Datasheet Details

Part number:

4N30M

Manufacturer:

Fairchild Semiconductor

File Size:

304.53 KB

Description:

General Purpose 6-Pin Photodarlington Optocoupler

Features

* High Sensitivity to Low Input Drive Current
* Meets or Exceeds All JEDEC Registered Speciﬁcations
* Safety and Regulatory Approvals:
* UL1577, 4,170 VACRMS for 1 Minute

Applications

* Low Power Logic Circuits
* Telecommunications Equipment
* Portable Electronics
* Solid State Relays
* Interfacing Coupling Systems of Different Potentials and Impedances Schematic ANODE 1 CATHODE 2 N/C 3 6 BASE 5 COLLECTOR 4 EMITTER Figure 1. Schematic 6 6 1 1 6 1 Figure 2
