4N32X3 - LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS

This page provides the datasheet information for the 4N32X3, a member of the 4N32-x LOW INPUT CURRENT PHOTODARLINGTON OPTICALLY COUPLED ISOLATORS family.

Datasheet Summary

Description

The 4N32-3,-2,-1 series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in a space efficient dual in line plastic package.

Features

  • l Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.25mA I F l High CurrentTransfer Ratio (200% min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (55V min) l All electrical parameters 100% tested l Custom electrical selections available.

📥 Download Datasheet

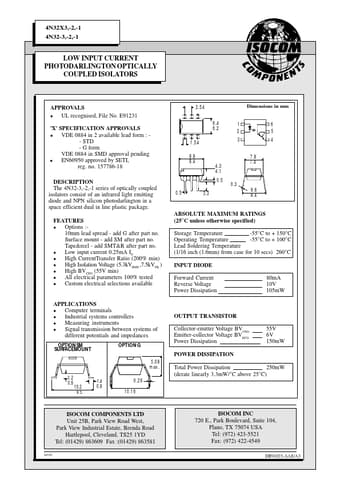

Datasheet preview – 4N32X3
