4N32X3-1 Datasheet, Isolators, ISOCOM

4N32X3-1 Features

• Isolators l Options :- 10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l Low input current 0.25mA I F l High CurrentTrans

PDF File Details

Part number:

4N32X3-1

Manufacturer:

ISOCOM

File Size:

66.38kb

Download:

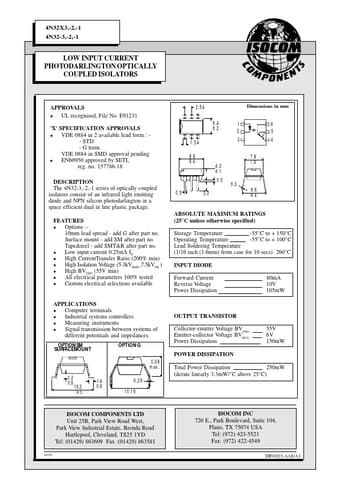

📄 Datasheet

Description:

Low input current photodarlington optically coupled isolators. The 4N32-3,-2,-1 series of optically coupled isolators consist of an infrared light emitting diode and NPN silicon photodarlington in

4N32X3-1 Application

• Applications l Computer terminals l Industrial systems controllers l Measuring instruments l Signal transmission between
