70N08 Datasheet, Mosfet, Fairchild Semiconductor

70N08 Features

  • Mosfet
  • 77.5A, 80V, RDS(on) = 0.017Ω @VGS = 10 V Low gate charge ( typical 75 nC) Low Crss ( typical 180 pF) Fast switching

PDF File Details

Part number:

70N08

Manufacturer:

Fairchild Semiconductor

File Size:

703.54kb

Download:

📄 Datasheet

Description:

N-channel mosfet. Features

  • 77.5A, 80V, RDS(on) = 0.017Ω @VGS = 10 V Low gate char

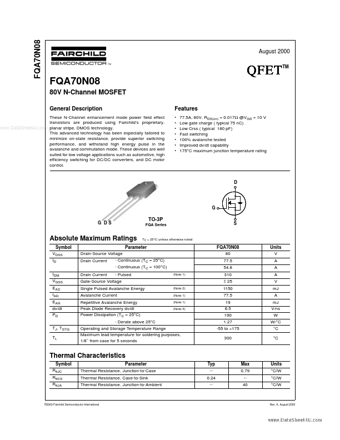

  • Datasheet Preview: 70N08 📥 Download PDF (703.54kb)
    Page 2 of 70N08 Page 3 of 70N08

    70N08 Application

    • Applications such as automotive, high efficiency switching for DC/DC converters, and DC motor control. D ! " G! G DS ! " " " TO-3P FQA Series !
