70N20 Datasheet, Fda70n20, Fairchild Semiconductor

70N20 Features

  • Fda70n20
  • RDS(on) = 35 mΩ (Max.) @ VGS = 10 V, ID = 35 A
  • Low Gate Charge (Typ. 66 nC)
  • Low Crss (Typ. 89 pF)
  • 100% Avalanche Tested Description UniFETTM MOS

PDF File Details

Part number:

70N20

Manufacturer:

Fairchild Semiconductor

File Size:

910.86kb

Download:

📄 Datasheet

Description:

Fda70n20. UniFETTM MOSFET is Fairchild Semiconductor’s high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET is ta

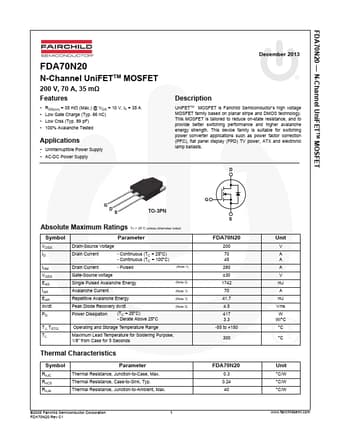

Datasheet Preview: 70N20 📥 Download PDF (910.86kb)
Page 2 of 70N20 Page 3 of 70N20

70N20 Application

  • Applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts. Applications
  • Uni
