70N10 N-Channel MOSFET Transistor

70N10 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 70N10 *.
Drain Current ID= 70A@ TC=25℃. Drain Source Voltage- : VDSS= 100V(Min). Fast Switching Speed. APPLICATIONS. General purpose powe.

70N10 Applications

* General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Current-continuous@ TC=25℃ 100 ±30 70 V V A ID(puls) Pulse Drain Current 280 A Ptot Total Dissipation@TC=25℃ 250 W Tj M

📥 Download Datasheet

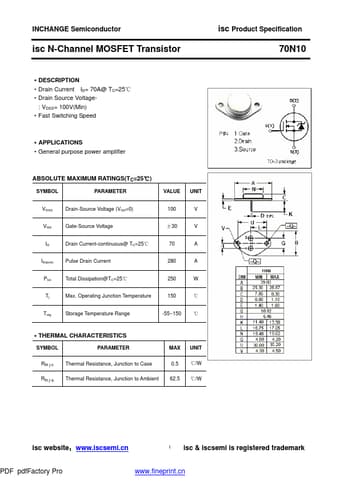

Preview of 70N10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
70N10
Manufacturer
Inchange Semiconductor
File Size
43.27 KB
Datasheet
70N10-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
