74ABT16244 - 16-Bit Buffer/Line Driver

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	74ABT16244
Manufacturer	Fairchild Semiconductor
File Size	126.34 KB
Description	16-Bit Buffer/Line Driver
Datasheet	74ABT16244 Datasheet

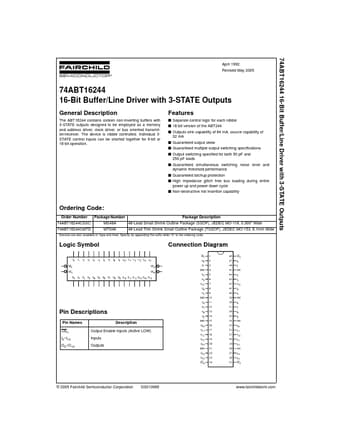

Additional preview pages of the 74ABT16244 datasheet.

Product details

Description

The ABT16244 contains sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver.

Features

s Separate control logic for each nibble s 16-bit version of the ABT244 s Outputs sink capability of 64 mA, source capability of 32 mA s Guaranteed output skew s Guaranteed multiple output switching specifications s Output switching specified for both 50 pF and 250 pF loads s Guaranteed simultaneous switching noise level and dynamic threshold performance s Guaranteed latchup protection s High impedance glitch free bus loading during entire power up and power down cycle s Non-destructive hot inse.
