74ABT16245B-Q100 Description

74ABT16245B-Q100 16-bit bus transceiver; 3-state Rev.1 * 10 April 2017 Product data sheet 1 General .
The 74ABT16245B-Q100 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive.

74ABT16245B-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 3)
* Specified from -40 °C to +85 °C
* 16-bit bidirectional bus interface
* Multiple VCC and GND pins minimize switching noise
* Power-up 3-state
* 3-state buffers
* Output

📥 Download Datasheet

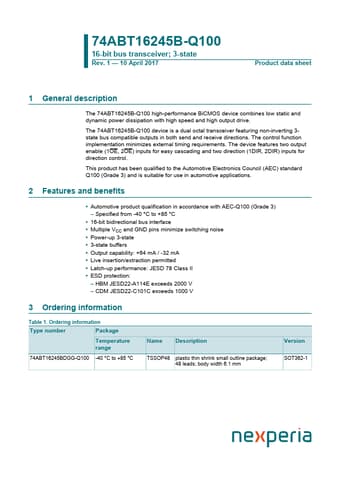

74ABT16245B-Q100 Datasheet Preview — Preview of 74ABT16245B-Q100 PDF

Datasheet Details

Part number: 74ABT16245B-Q100
Manufacturer: nexperia ↗
File Size: 174.69 KB
Datasheet: 74ABT16245B-Q100-nexperia.pdf
Description: 16-bit bus transceiver
