74ABT16245BDGG Datasheet, Transceiver, nexperia

74ABT16245BDGG Features

  • Transceiver
  • Supply voltage range from 4.5 to 5.5 V
  • BiCMOS high speed and output drive
  • Direct interface with TTL levels
  • 16-bit bidirectional bus interface

PDF File Details

Part number:

74ABT16245BDGG

Manufacturer:

nexperia ↗

File Size:

211.04kb

Download:

📄 Datasheet

Description:

16-bit bus transceiver. The 74ABT16245B is a 16-bit transceiver with 3-state outputs. The device can be used as two 8-bit transceivers or one 16-bit transcei

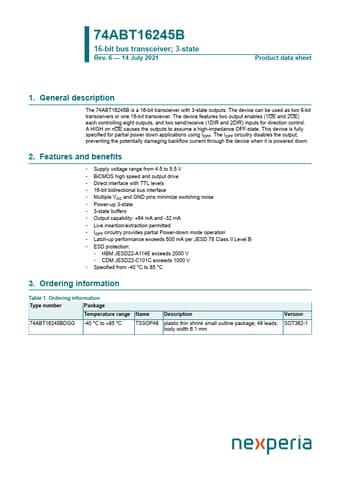

Datasheet Preview: 74ABT16245BDGG 📥 Download PDF (211.04kb)
Page 2 of 74ABT16245BDGG Page 3 of 74ABT16245BDGG

74ABT16245BDGG Application

  • Applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is
