74LS373 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

Fairchild Semiconductor

Description

DM74LS373/DM74LS374 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops March 1998 DM74LS373/DM74LS374 3-STATE Octal D-Type Trans.
These 8-bit registers feature totem-pole 3-STATE outputs designed specifically for driving highly-capacitive or relatively low-impedance loads.

📥 Download Datasheet

74LS373 Datasheet Preview — Preview of 74LS373 PDF

Datasheet Specifications

Part number: 74LS373
Manufacturer: Fairchild Semiconductor
File Size: 175.50 KB
Datasheet: 74LS373-FairchildSemiconductor.pdf
Description: 3-STATE Octal D-Type Transparent Latches and Edge-Triggered Flip-Flops

Features

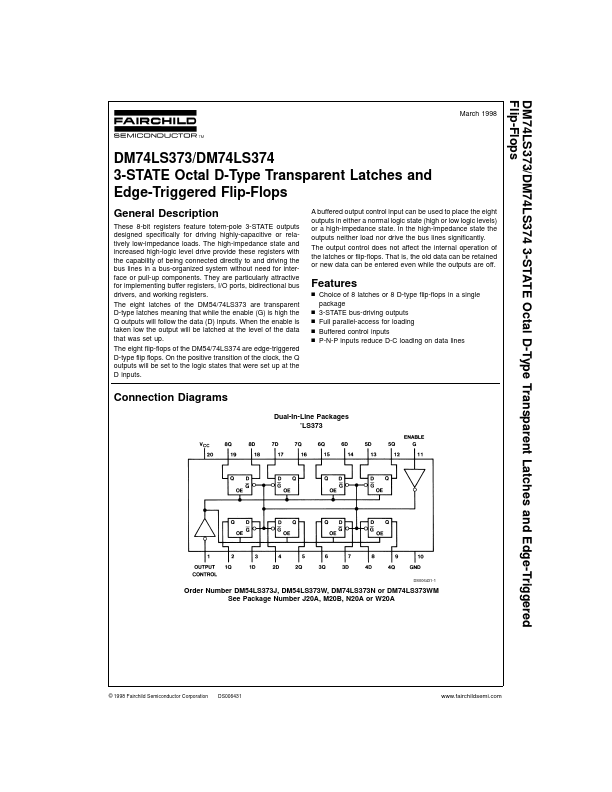

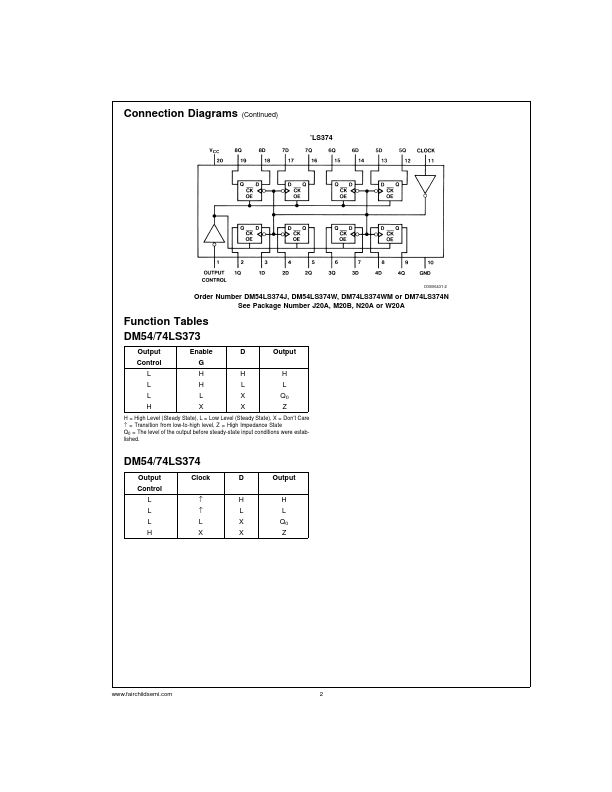

* n Choice of 8 latches or 8 D-type flip-flops in a single package n 3-STATE bus-driving outputs n Full parallel-access for loading n Buffered control inputs n P-N-P inputs reduce D-C loading on data lines Connection Diagrams Dual-In-Line Packages ’LS373 DS006431-1 Order Number DM54LS373J, DM54LS37
