BD244C Datasheet - Fairchild Semiconductor

BD244C - PNP Epitaxial Silicon Transistor

BD244/A/B/C BD244/A/B/C Medium Power Linear and Switching Applications Complement to BD243, BD243A, BD243B and BD243C respectively 1 TO-220 2.Collector 3.Emitter 1.Base PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO Parameter Collector-Base Voltage : BD244 : BD244A : BD244B : BD244C VCEO Collector-Emitter Voltage : BD244 : BD244A : BD244B : BD244C Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Base C.

BD244C_FairchildSemiconductor.pdf

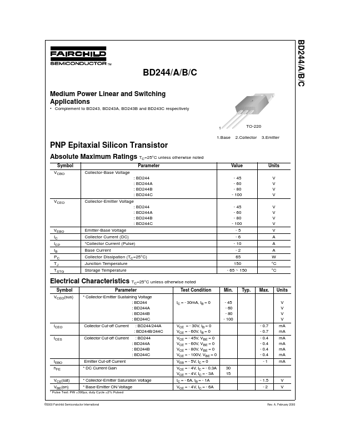

BD244C Datasheet Preview — Preview of BD244C PDF

Datasheet Details

Part number:

BD244C

Manufacturer:

Fairchild Semiconductor

File Size:

38.33 KB

Description:

Pnp epitaxial silicon transistor.
