CD4040BC

12-Stage Ripple Carry Binary Counters

CD4040BC Features

* Wide supply voltage range: 3.0V to 15V

* High noise immunity: 0.45 VDD (Typ.)

* Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS

* Medium speed operation: 8MHz typ. at VDD = 10V

* Schmitt trigger clock input General Description The CD4060BC is a 14-stage

CD4040BC General Description

The CD4060BC is a 14-stage ripple carry binary counter, and the CD4040BC is a 12-stage ripple carry binary counter. The counters are advanced one count on the negative transition of each clock pulse. The counters are reset to the zero state by a logical “1” at the reset input independent of clock. .

CD4040BC Datasheet (350.54 KB)

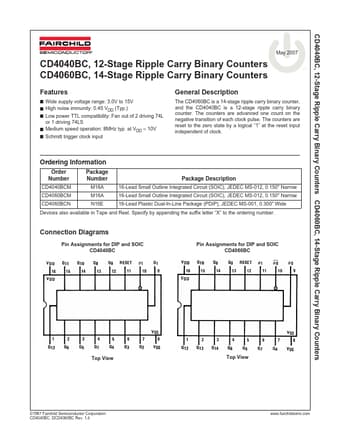

Preview of CD4040BC PDF

Datasheet Details

Part number:

CD4040BC

Manufacturer:

Fairchild Semiconductor

File Size:

350.54 KB

Description:

12-stage ripple carry binary counters.
CD4040BC, 12-Stage Ripple Carry Binary Counters CD4060BC, 14-Stage Ripple Carry Binary Counters May 2007 CD4040BC, 12-Stage Ripple Carry Binary Coun.
