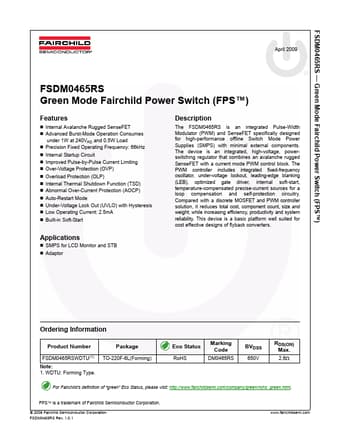

DM0465RS Datasheet - Fairchild Semiconductor

DM0465RS Green Mode Fairchild Power Switch

The FSDM0465RS is an integrated Pulse-Width Modulator (PWM) and SenseFET specifically designed for high-performance offline Switch Mode Power Supplies (SMPS) with minimal external components. The device is an integrated, high-voltage, powerswitching regulator that combines an avalanche rugged SenseF.

DM0465RS Features

* ! Internal Avalanche Rugged SenseFET ! Advanced Burst-Mode Operation Consumes under 1W at 240VAC and 0.5W Load ! Precision Fixed Operating Frequency: 66kHz ! Internal Startup Circuit ! Improved Pulse-by-Pulse Current Limiting ! Over-Voltage Protection (OVP) ! Overload Protection (OLP) ! Internal The

DM0465RS-FairchildSemiconductor.pdf
