DM74LS132

Quad 2-Input NAND Gate

Fairchild Semiconductor

DM74LS132 General Description

This device contains four independent gates each of which performs the logic NAND function. Each input has hysteresis which increases the noise immunity and transforms a slowly changing input signal to a fast changing, jitter free output. Ordering Code: Order Number DM74LS132M DM74LS132SJ DM74LS132.

DM74LS132 Datasheet (57.65 KB)

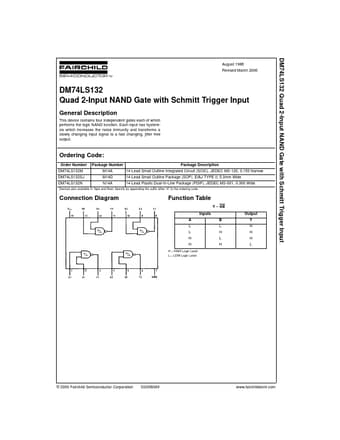

DM74LS132 Datasheet Preview — Preview of DM74LS132 PDF

Datasheet Details

Part number:

DM74LS132

Manufacturer:

Fairchild Semiconductor

File Size:

57.65 KB

Description:

Quad 2-input nand gate.
DM74LS132 Quad 2-Input NAND Gate with Schmitt Trigger Input August 1986 Revised March 2000 DM74LS132 Quad 2-Input NAND Gate with Schmitt Trigger Inp.
