DM74LS151 Datasheet - Fairchild Semiconductor

DM74LS151 1-of-8 Line Data Selector/Multiplexer

This data selector/multiplexer contains full on-chip decoding to select the desired data source. The DM74LS151 selects one-of-eight data sources. The DM74LS151 has a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output HIGH, and the .

DM74LS151 Features

* complementary W and Y outputs. Features s Select one-of-eight data lines s Performs parallel-to-serial conversion s Permits multiplexing from N lines to one line s Also for use as Boolean function generator s Typical average propagation delay time data input to W output 12.5 ns s Typical power diss

DM74LS151_FairchildSemiconductor.pdf

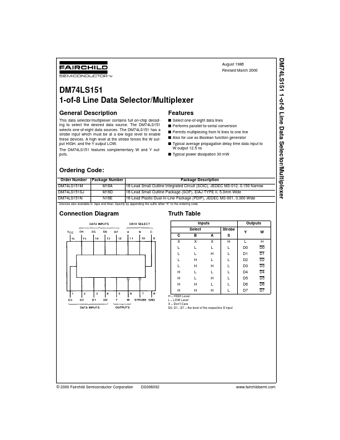

DM74LS151 Datasheet Preview — Preview of DM74LS151 PDF

Datasheet Details

Part number:

DM74LS151

Manufacturer:

Fairchild Semiconductor

File Size:

70.02 KB

Description:

1-of-8 line data selector/multiplexer.
