FAN2306AMPX - 6A Synchronous Buck Regulator

Fairchild Semiconductor

📥 Download Datasheet

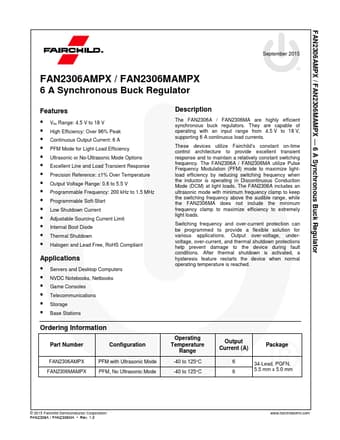

FAN2306AMPX Datasheet Preview — Preview of FAN2306AMPX PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FAN2306AMPX
Manufacturer	Fairchild ↗ Semiconductor
File Size	1.90 MB
Description	6A Synchronous Buck Regulator
Datasheet	FAN2306AMPX-FairchildSemiconductor.pdf

FAN2306AMPX Product details

Description

The FAN2306A / FAN2306MA are highly efficient synchronous buck regulators.

Features

VIN Range: 4.5 V to 18 V.
High Efficiency: Over 96% Peak.
Continuous Output Current: 6 A.
PFM Mode for Light-Load Efficiency.
Ultrasonic or No-Ultrasonic Mode Options.
Excellent Line and Load Transient Response.
Precision Reference: ±1% Over Temperature.
Output Voltage Range: 0.6 to 5.5 V.
Programmable Frequency: 200 kHz to 1.5 MHz.
Programmable Soft-Start.
Low Shutdown Current.
Adjustable Sourcing Current Limit.
Internal Boot Dio.
