FAN23SV15MAMPX - 15A Synchronous Buck Regulator

Fairchild Semiconductor

📥 Download Datasheet

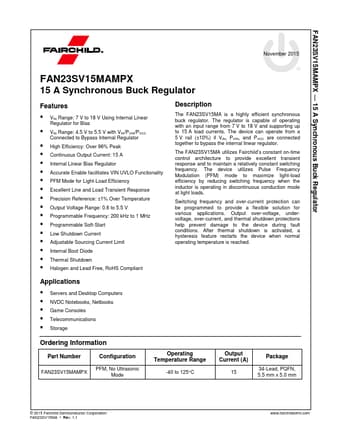

FAN23SV15MAMPX Datasheet Preview — Preview of FAN23SV15MAMPX PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FAN23SV15MAMPX
Manufacturer	Fairchild ↗ Semiconductor
File Size	1.85 MB
Description	15A Synchronous Buck Regulator
Datasheet	FAN23SV15MAMPX-FairchildSemiconductor.pdf

FAN23SV15MAMPX Product details

Description

The FAN23SV15MA is a highly efficient synchronous buck regulator.

Features

VIN Range: 7 V to 18 V Using Internal Linear Regulator for Bias.
VIN Range: 4.5 V to 5.5 V with VIN/PVIN/PVCC Connected to Bypass Internal Regulator.
High Efficiency: Over 96% Peak.
Continuous Output Current: 15 A.
Internal Linear Bias Regulator.
Accurate Enable facilitates VIN UVLO Functionality.
PFM Mode for Light-Load Efficiency.
Excellent Line and Load Transient Response.
Precision Reference: ±1% Over Temperature.
Output Voltage Range: 0.6 t.
