FAN23SV60AMPX - 10A Synchronous Buck Regulator

Datasheet Summary

Description

The FAN23SV60A is a highly efficient synchronous buck regulator.

The regulator is capable of operating with an input range from 7 V to 24 V and supporting up to 10 A continuous load currents.

Features

  • VIN Range: 7 V to 24 V Using Internal Linear Regulator for Bias.
  • VIN Range: 4.5 V to 5.5 V with VIN/PVIN/PVCC Connected to Bypass Internal Regulator.
  • High Efficiency: Over to 96% Peak.
  • Continuous Output Current: 10 A.
  • Internal Linear Bias Regulator.
  • Accurate Enable facilitates VIN UVLO Functionality.
  • PFM Mode for Light-Load Efficiency.
  • Excellent Line and Load Transient Response.
  • Precision Reference: ±1% Over Temperature.
  • Output Voltage Range: 0.

📥 Download Datasheet

Datasheet preview – FAN23SV60AMPX

Datasheet Details

Part number FAN23SV60AMPX
Manufacturer Fairchild Semiconductor
File Size 1.43 MB
Description 10A Synchronous Buck Regulator
Datasheet download datasheet FAN23SV60AMPX Datasheet
Additional preview pages of the FAN23SV60AMPX datasheet.

📁 Similar Datasheet

  • FAN23SV65AMPX - Buck Regulator (ON Semiconductor)
  • FAN2001 - High-Efficiency Step-Down DC-DC Converter (ON Semiconductor)
  • FAN2002 - High-Efficiency Step-Down DC-DC Converter (ON Semiconductor)
  • FAN251015 - Synchronous Buck Regulator (ON Semiconductor)
  • FAN251030 - Synchronous Buck Regulator (ON Semiconductor)
  • FAN251040 - Synchronous Buck Regulator (ON Semiconductor)
  • FAN256 - Dual Low Voltage Comparator (ON Semiconductor)
  • FAN104 - Case Fan (LogiLink)
  • FAN1100-F085 - Ignition Gate Driver IC (ON Semiconductor)
  • FAN156 - Low Voltage Comparator (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

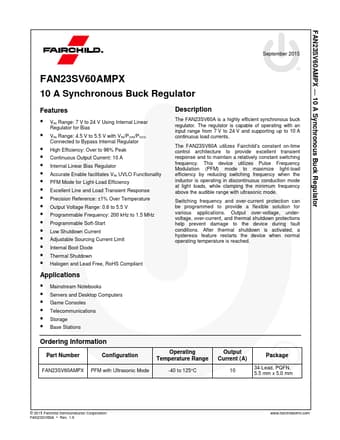

FAN23SV60AMPX — 10 A Synchronous Buck Regulator September 2015 FAN23SV60AMPX 10 A Synchronous Buck Regulator Features  VIN Range: 7 V to 24 V Using Internal Linear Regulator for Bias  VIN Range: 4.5 V to 5.5 V with VIN/PVIN/PVCC Connected to Bypass Internal Regulator  High Efficiency: Over to 96% Peak  Continuous Output Current: 10 A  Internal Linear Bias Regulator  Accurate Enable facilitates VIN UVLO Functionality  PFM Mode for Light-Load Efficiency  Excellent Line and Load Transient Response  Precision Reference: ±1% Over Temperature  Output Voltage Range: 0.6 to 5.5 V  Programmable Frequency: 200 kHz to 1.
