FAN3225

Low-Side Gate Drivers

FAN3225 Features

* Industry-Standard Pinouts 4.5 to 18V Operating Range 5A Peak Sink/Source at VDD = 12V 4.3A Sink / 2.8A Source at VOUT = 6V Choice of TTL or CMOS Input Thresholds Three Versions of Dual Independent Drivers: Description The FAN3223-25 family of dual 4A gate drivers

FAN3225 General Description

The FAN3223-25 family of dual 4A gate drivers is designed to drive N-channel enhancement-mode MOSFETs in low-side switching applications by providing high peak current pulses during the short switching intervals. The driver is available with either TTL or CMOS input thresholds. Internal circuitry pr.

FAN3225 Datasheet (1.37 MB)

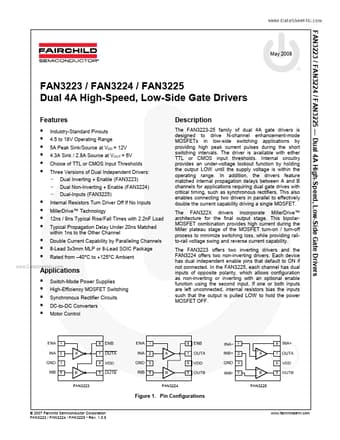

Preview of FAN3225 PDF

Datasheet Details

Part number:

FAN3225

Manufacturer:

Fairchild Semiconductor

File Size:

1.37 MB

Description:

Low-side gate drivers.
FAN3223 / FAN3224 / FAN3225

* Dual 4A High-Speed, Low-Side Gate Drivers May 2008 FAN3223 / FAN3224 / FAN3225 Dual 4A High-Speed, Low-Side Ga.
