FAN3213

Low-Side Gate Drivers

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi FAN3213TMX IC GATE DRVR LOW-SIDE 8SOIC DigiKey 4895 0
$0

FAN3213 Datasheet (824.04 KB)

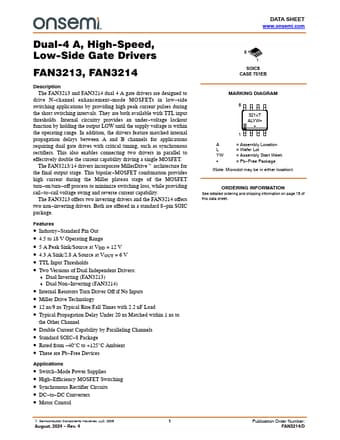

Preview of FAN3213 PDF

Datasheet Details

Part number:

FAN3213

Manufacturer:

ON Semiconductor ↗

File Size:

824.04 KB

Description:

Low-side gate drivers.

FAN3213 Features

* Industry

* Standard Pin Out

* 4.5 to 18 V Operating Range

* 5 A Peak Sink/Source at VDD = 12 V

* 4.3 A Sink/2.8 A Source at VOUT = 6 V

* TTL Input Thresholds

* Two Versions of Dual Independent Drivers:

* Dual Inverting (FAN3213)

FAN3213 General Description

The FAN3213 and FAN3214 dual 4 A gate drivers are designed to drive N

*channel enhancement

*mode MOSFETs in low

*side switching applications by providing high peak current pulses during the short switching intervals. They are both available with TTL input thresholds. Internal ci.
