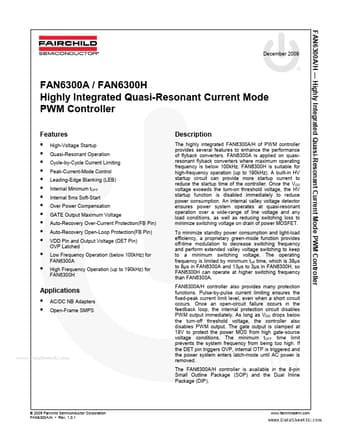

FAN6300A - Highly Integrated Quasi-Resonant Current Mode PWM Controller

Fairchild Semiconductor

Datasheet Details

Part number	FAN6300A
Manufacturer	Fairchild Semiconductor
File Size	1.04 MB
Description	Highly Integrated Quasi-Resonant Current Mode PWM Controller
Datasheet	FAN6300A_FairchildSemiconductor.pdf

The highly integrated FAN6300A/H of PWM controller provides several

High-Voltage Startup Quasi-Resonant Operation Cycle-by-Cycle Current Limiting Peak-Current-Mode Control Leading-Edge Blanking (LEB) Internal Minimum tOFF Internal 5ms Soft-Start Over Power Compensation GATE Output Maximum Voltage Auto-Recovery Over-Current Protection(FB Pin) Auto-Recovery Open-Loop Protection(FB Pin) VDD Pin and Output Voltage (DET Pin) OVP Latched Low Frequency Operation (below 100kHz) for FAN63.
