FAN6755 - Highly Integrated Green-Mode PWM Controller

Datasheet Summary

Description

This highly integrated PWM controller provides several

Features

  • Internal High-Voltage Startup Low Operating Current (Maximum: 2mA) Adaptive Decreasing of PWM Frequency to 23KHz at Light-Load condition to Improve Light-Load Efficiency Frequency Hopping to Reduce EMI Emission Fixed PWM Frequency: 65KHz Internal Leading-Edge Blanking Built-in Synchronized Slope Compensation Auto-Restart Protection : Feedback Open-Loop Protection (OLP), VDD Over-Voltage Protection (OVP), Over-Temperature Protection (OTP), and Line.

📥 Download Datasheet

Datasheet preview – FAN6755

Datasheet Details

Part number FAN6755
Manufacturer Fairchild Semiconductor
File Size 880.58 KB
Description Highly Integrated Green-Mode PWM Controller
Datasheet download datasheet FAN6755 Datasheet
Additional preview pages of the FAN6755 datasheet.

📁 Similar Datasheet

  • FAN604H - Offline Quasi-Resonant PWM Controller (ON Semiconductor)
  • FAN604P - Offline Quasi-Resonant PWM Controller (ON Semiconductor)
  • FAN6080HMX - Offline Quasi-Resonant PWM Controller (ON Semiconductor)
  • FAN6204A - Synchronous Rectification Controller (ON Semiconductor)
  • FAN6241M6X - Secondary Side Synchronous Rectifier Controller (ON Semiconductor)
  • FAN6248 - Advanced Synchronous Rectifier Controller (ON Semiconductor)
  • FAN6248HC - Advanced Synchronous Rectifier Controller (ON Semiconductor)
  • FAN6248HD - Advanced Synchronous Rectifier Controller (ON Semiconductor)
  • FAN6248LC - Advanced Synchronous Rectifier Controller (ON Semiconductor)
  • FAN6248LD - Advanced Synchronous Rectifier Controller (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor
  • FAN6755UW - mWSaver PWM Controller
  • FAN6755W - mWSaver PWM Controller
  • FAN6751 - Highly Integrated Green-Mode PWM Controller
  • FAN6753 - Highly Integrated Green-Mode PWM Controller
  • FAN6754 - Highly Integrated Green-Mode PWM Controller
  • FAN6754A - Highly Integrated Green- Mode PWM Controller
  • FAN6754WA - Highly Integrated Green-Mode PWM Controller
  • FAN6756 - PWM Controller

Full PDF Text Transcription

Click to expand full text

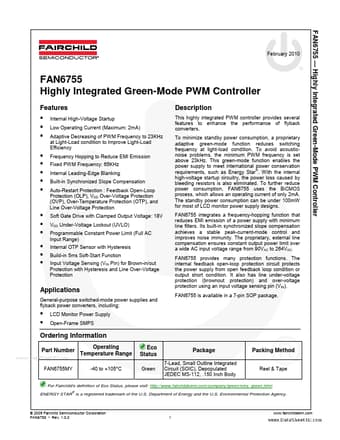

FAN6755 — Highly Integrated Green-Mode PWM Controller February 2010 FAN6755 Highly Integrated Green-Mode PWM Controller Features ƒ ƒ ƒ ƒ ƒ ƒ ƒ ƒ Internal High-Voltage Startup Low Operating Current (Maximum: 2mA) Adaptive Decreasing of PWM Frequency to 23KHz at Light-Load condition to Improve Light-Load Efficiency Frequency Hopping to Reduce EMI Emission Fixed PWM Frequency: 65KHz Internal Leading-Edge Blanking Built-in Synchronized Slope Compensation Auto-Restart Protection : Feedback Open-Loop Protection (OLP), VDD Over-Voltage Protection (OVP), Over-Temperature Protection (OTP), and Line Over-Voltage Protection Soft Gate Drive with Clamped Output Voltage: 18V VDD Under-Voltage Lockout (UVLO) Programmable Constant Power Limit (Full AC Input Range) Internal OTP Sensor with Hysteresis Bui
