FAN7680

PC Power Supply Outputs Monitoring IC

FAN7680 Features

* PC Power Supply Output Monitor Circuitry

* Few External Components

* Over Voltage Protection for 3.3V, 5V and 12V(Vcc) Outputs

* Under Voltage Protection for 3.3V, 5V and 12V(Vcc) Outputs with Delay Time

* Fault Protection Output with Open Drain Output

FAN7680 General Description

The FAN7680 is a complete output supervisory circuitry intended for use in the secondary side of a switched mode power supply. It provides over voltage protection (OVP), under voltage protection (UVP), fault protection output (FPO), remote On/Off (PSON), latch, internal delay circuits and power good.

FAN7680 Datasheet (234.52 KB)

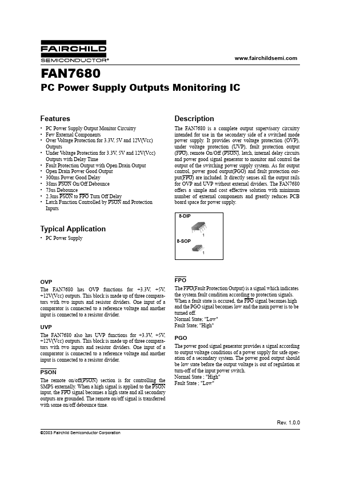

Preview of FAN7680 PDF

Datasheet Details

Part number:

FAN7680

Manufacturer:

Fairchild Semiconductor

File Size:

234.52 KB

Description:

Pc power supply outputs monitoring ic.
