FAN7688

Advanced Secondary Side LLC Resonant Converter Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi FAN7688SJX IC CNTRLR PC PS OUTPUT 16SOP DigiKey 2000 2000 units
$1.03

FAN7688 Datasheet (0.97 MB)

Preview of FAN7688 PDF

Datasheet Details

Part number:

FAN7688

Manufacturer:

ON Semiconductor ↗

File Size:

0.97 MB

Description:

Advanced secondary side llc resonant converter controller.

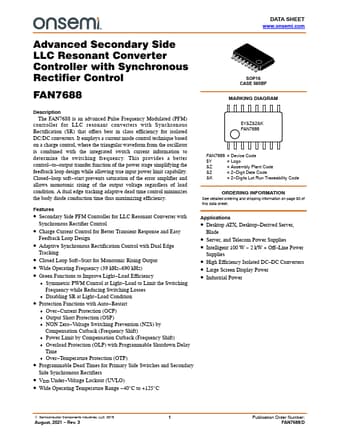

DATA SHEET www.onsemi.com Advanced Secondary Side LLC Resonant Converter Controller with Synchronous Rectifier Control FAN7688 SOP16 CASE 565BF MARK.

FAN7688 Features

* Secondary Side PFM Controller for LLC Resonant Converter with Synchronous Rectifier Control

* Charge Current Control for Better Transient Response and Easy Feedback Loop Design

* Adaptive Synchronous Rectification Control with Dual Edge Tracking

* Closed Loop Soft

FAN7688 General Description

The FAN7688 is an advanced Pulse Frequency Modulated (PFM) controller for LLC resonant converters with Synchronous Rectification (SR) that offers best in class efficiency for isolated DC/DC converters. It employs a current mode control technique based on a charge control, where the triangular wavefo.
