FAN7930C

Critical Conduction Mode PFC Controller

FAN7930C Features

* PFC-Ready Signal Input Voltage Absent Detection Maximum Switching Frequency Limitation Internal Soft-Start and Startup without Overshoot Internal Total Harmonic Distortion (THD) Optimizer Precise Adjustable Out

FAN7930C General Description

The FAN7930C is an active power factor correction (PFC) controller for boost PFC applications that operate in critical conduction mode (CRM). It uses a voltagemode PWM that compares an internal ramp signal with the error amplifier output to generate a MOSFET turn-off signal. Because the voltage-mode.

FAN7930C Datasheet (950.69 KB)

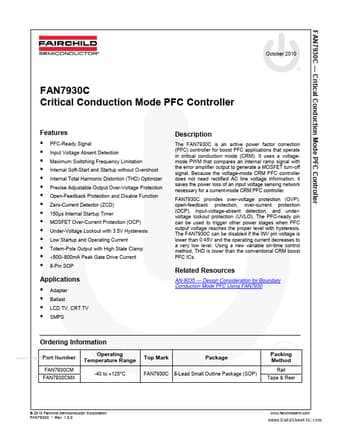

Preview of FAN7930C PDF

Datasheet Details

Part number:

FAN7930C

Manufacturer:

Fairchild Semiconductor

File Size:

950.69 KB

Description:

Critical conduction mode pfc controller.
