FDA032N08, N-Channel MOSFET

FDA032N08 * N-Channel PowerTrench® MOSFET FDA032N08 N-Channel PowerTrench® MOSFET 75 V, 235 A, 3.2 mΩ May 2014 .
This N-Channel MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench® process that has been tailored to minimize the on-state resist.

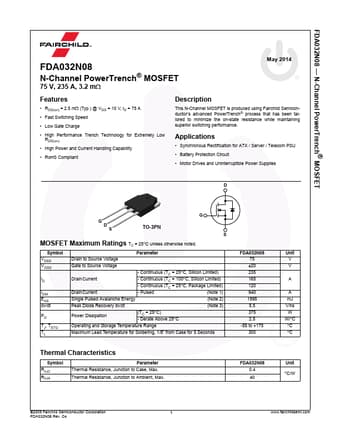

datasheet Preview Page 1 from Datasheet4u.com

FDA032N08_FairchildSemiconductor.pdf

FDA032N08 Datasheet Preview — Preview of FDA032N08 PDF

Datasheet Details

Part number:

FDA032N08

Manufacturer:

Fairchild Semiconductor

File Size:

1.38 MB

Description:

N-Channel MOSFET

Features

* RDS(on) = 2.5 mΩ (Typ. ) @ VGS = 10 V, ID = 75 A
* Fast Switching Speed
* Low Gate Charge
* High Performance Trench Technology for Extremely Low RDS(on)
* High Power and Current Handling Capability

Applications

* Synchronous Rectification for ATX / Server / Telecom PSU
* Battery Protection Circuit
* Motor Drives and Uninterruptible Power Supplies D G D S TO-3PN G S MOSFET Maximum Ratings TC = 25oC unless otherwise noted. Symbol VDSS VGSS ID IDM EAS dv/dt PD TJ, TSTG TL Parame
