FDA15N65 Datasheet, Mosfet, Fairchild Semiconductor

FDA15N65 Features

  • Mosfet
  • 16A, 650V, RDS(on) = 0.44Ω @VGS = 10 V
  • Low gate charge ( typical 48.5 nC)
  • Low Crss ( typical 23.6 pF)
  • Fast switching
  • 100% avalanche tes

PDF File Details

Part number:

FDA15N65

Manufacturer:

Fairchild Semiconductor

File Size:

840.11kb

Download:

📄 Datasheet

Description:

N-channel mosfet. These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS techn

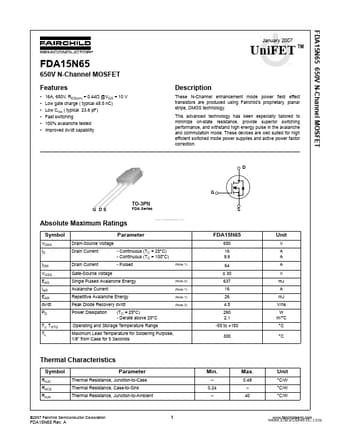

Datasheet Preview: FDA15N65 📥 Download PDF (840.11kb)
Page 2 of FDA15N65 Page 3 of FDA15N65
