FDA16N50 - N-Channel MOSFET

Fairchild Semiconductor

📥 Download Datasheet

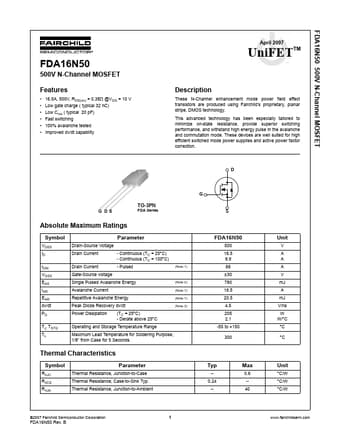

FDA16N50 Datasheet Preview — Preview of FDA16N50 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FDA16N50
Manufacturer	Fairchild ↗ Semiconductor
File Size	855.32 KB
Description	N-Channel MOSFET
Datasheet	FDA16N50_FairchildSemiconductor.pdf

FDA16N50 Product details

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

Features

16.5A, 500V, RDS(on) = 0.38Ω @VGS = 10 V.
Low gate charge ( typical 32 nC).
Low Crss ( typical 20 pF).
Fast switching.
100% avalanche tested.
Improved dv/dt capability April 2007 UniFETTM.
