FDS4070N7 Datasheet, mosfet equivalent, Fairchild Semiconductor

PDF File Details

Part number: FDS4070N7

Manufacturer: Fairchild Semiconductor

File Size: 201.94KB

Download: 📄 Datasheet

Description: N-Channel MOSFET

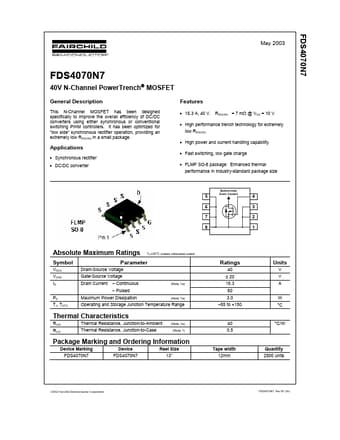

Datasheet Preview: FDS4070N7 📥 Download PDF (201.94KB)

FDS4070N7 Features and benefits


* 15.3 A, 40 V. RDS(ON) = 7 mΩ @ VGS = 10 V
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability
* .

FDS4070N7 Application


* Synchronous rectifier
* DC/DC converter 5 6 7 8 Bottom-side Drain Contact 4 3 2 1 Absolute Maximum Ratings.

FDS4070N7 Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for “low side” synchronous rectifier operation, provi.
