FGP30N6S2D Datasheet, igbt equivalent, Fairchild Semiconductor

FGP30N6S2D Features

• Igbt
• 100kHz Operation at 390V, 14A
• 200kHZ Operation at 390V, 9A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . 90ns at TJ = 125o

PDF File Details

Part number:

FGP30N6S2D

Manufacturer:

Fairchild Semiconductor

File Size:

281.66kb

Download:

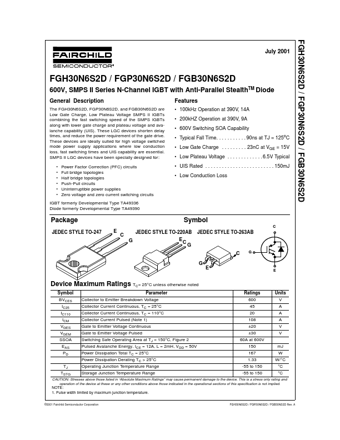

📄 Datasheet

Description:

600v/ smps ii series n-channel igbt. The FGH30N6S2D, FGP30N6S2D, and FGB30N6S2D are Low Gate Charge, Low Plateau Voltage SMPS II IGBTs combining the fast switching speed

FGP30N6S2D Application

• Applications where low conduction loss, fast switching times and UIS capability are essential. SMPS II LGC devices have been specially designed for:
