FGP50C, FGP50B - Glass Passivated Ultrafast Plastic Rectifier

Vishay

📥 Download Datasheet

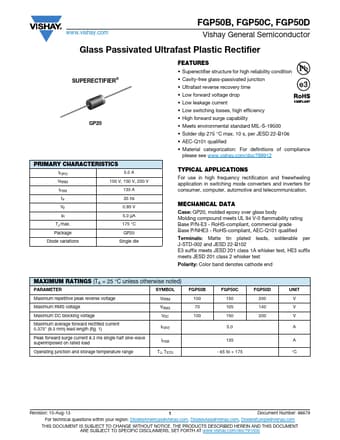

FGP50C Datasheet Preview — This datasheet PDF includes multiple part numbers: FGP50C, FGP50B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FGP50C, FGP50B
Manufacturer	Vishay ↗
File Size	70.06 KB
Description	Glass Passivated Ultrafast Plastic Rectifier
Datasheet	FGP50B-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: FGP50C, FGP50B. Please refer to the document for exact specifications by model.

FGP50C Product details

Features

Superectifier structure for high reliability condition.
Cavity-free glass-passivated junction.
Ultrafast reverse recovery time.
Low forward voltage drop.
Low leakage current.
Low switching losses, high efficiency.
High forward surge capability.
Meets environmental standard MIL-S-19500.
Solder dip 275 °C max. 10 s, per JESD 22-B106.
AEC-Q101 qualified.
Material categorization: For definitions of co.
