FGP20N6S2 Datasheet, Igbt, Fairchild Semiconductor

FGP20N6S2 Features

• Igbt
• 100kHz Operation at 390V, 7A
• 200kHZ Operation at 390V, 5A
• 600V Switching SOA Capability
• Typical Fall Time . . . . . . . . . . 85ns at TJ = 125oC

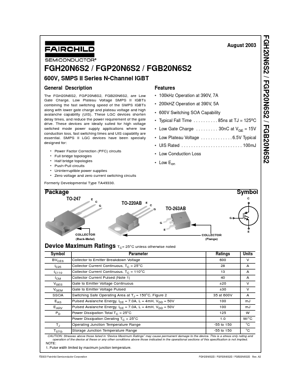

PDF File Details

Part number:

FGP20N6S2

Manufacturer:

Fairchild Semiconductor

File Size:

183.26kb

Download:

📄 Datasheet

Description:

600v/ smps ii series n-channel igbt. The FGH20N6S2, FGP20N6S2, FGB20N6S2, are Low Gate Charge, Low Plateau Voltage SMPS II IGBTs combining the fast switching speed of the

FGP20N6S2 Application

• Applications where low conduction loss, fast switching times and UIS capability are essential. SMPS II LGC devices have been specially designed for:

TAGS

FGP20N6S2

Fairchild Semiconductor
