FIN1001

3.3V LVDS 1-Bit High Speed Differential Driver

FIN1001 Features

* I Greater than 600Mbs data rate I 3.3V power supply operation I 0.5ns maximum differential pulse skew I 1.5ns maximum propagation delay I Low power dissipation I Power-Off protection I Meets or exceeds the TIA/EIA-644 LVDS standard I Flow-through pinout simplifies PCB layout I 5-Lead SOT23 package s

FIN1001 General Description

This single driver is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350 mV which provides low EMI at ultra low power dissipation even at high f.

FIN1001 Datasheet (618.14 KB)

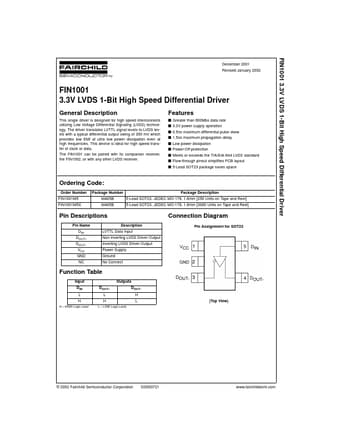

Preview of FIN1001 PDF

Datasheet Details

Part number:

FIN1001

Manufacturer:

Fairchild Semiconductor

File Size:

618.14 KB

Description:

3.3v lvds 1-bit high speed differential driver.
FIN1001 3.3V LVDS 1-Bit High Speed Differential Driver December 2001 Revised January 2002 FIN1001 3.3V LVDS 1-Bit High Speed Differential Driver Gen.
