FIN1022

2 X 2 LVDS High Speed Crosspoint Switch

FIN1022 Features

* s Low jitter, 800 Mbps full differential data path s Worst case jitter of 190ps with PRBS = 223

* 1 data pattern at 800 Mbps s Rail-to-rail common mode range is 0.5V to 3.25V s Worst case power dissipation is less than 126 mW s Open-circuit fail safe protection s Fast switch time of 1.1 ns t

FIN1022 General Description

This non-blocking 2x2 crosspoint switch has a fully differential input to output data path for low noise generation and low pulse width distortion. The device can be used as a high speed crosspoint switch, 2:1 multiplexer, 1:2 demultiplexer or 1:2 signal splitter. The inputs can directly interface w.

FIN1022 Datasheet (547.04 KB)

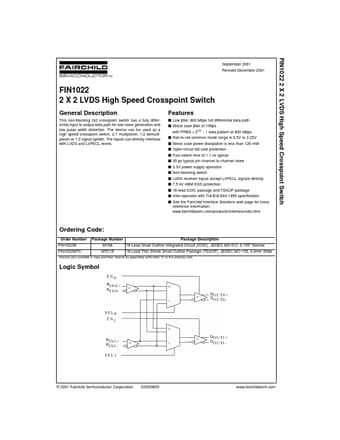

Preview of FIN1022 PDF

Datasheet Details

Part number:

FIN1022

Manufacturer:

Fairchild Semiconductor

File Size:

547.04 KB

Description:

2 x 2 lvds high speed crosspoint switch.
FIN1022 2 X 2 LVDS High Speed Crosspoint Switch September 2001 Revised December 2001 FIN1022 2 X 2 LVDS High Speed Crosspoint Switch General Descrip.
