FIN1019 - 3.3V LVDS High Speed Differential Driver/Receiver

ON Semiconductor

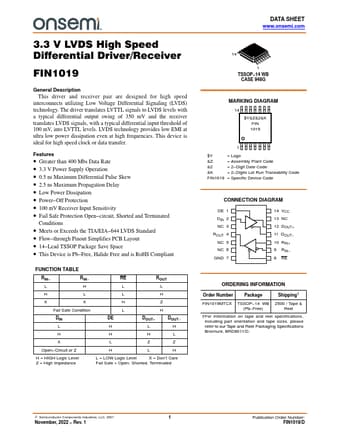

FIN1019 Datasheet Preview — Preview of FIN1019 PDF

Datasheet Details

Part number	FIN1019
Manufacturer	ON Semiconductor ↗
File Size	1.99 MB
Description	3.3V LVDS High Speed Differential Driver/Receiver
Datasheet	FIN1019-ONSemiconductor.pdf

FIN1019 Product details

Description

This driver and receiver pair are designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology.The driver translates LVTTL signals to LVDS levels with a typical differential output swing of 350 mV and the receiver translates LVDS signals, with a typical differential input threshold of 100 mV, into LVTTL levels.LVDS technology provides low EMI at ultra low power dissipation even at high frequencies.This device is ideal for high speed clock or data transf

Features

Greater than 400 Mbs Data Rate.
3.3 V Power Supply Operation.
0.5 ns Maximum Differential Pulse Skew.
2.5 ns Maximum Propagation Delay.
Low Power Dissipation.
Power.
Off Protection.
100 mV Receiver Input Sensitivity.
Fail Safe Protection Open.
circuit, Shorted and Terminated Conditions.
Meets or Exceeds the TIA/EIA.
644 LVDS Standard.
Flow.
through Pinout Simplifies PCB Layout.
