FIN1027 3.3V LVDS 2-Bit High Speed Differential Driver

This dual driver is designed for high-speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350mV, which provides low EMI at ultra-low power dissipation, even at high fr.

FIN1027 Features

* Greater than 600Mbs Data Rate

* 3V Power Supply Operation

* 5ns Maximum Differential Pulse Skew

* 1.5ns Maximum Propagation Delay

* Low Power Dissipation

* Power-Off Protection

* Meets or Exceeds the TIA/EIA-644 LVDS Standard

* Flow-through Pinout Simplifies PCB Lay

FIN1027A-FairchildSemiconductor.pdf

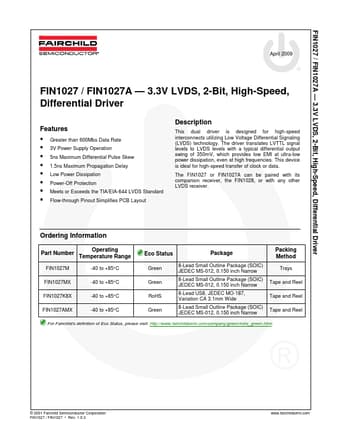

FIN1027 Datasheet Preview — This datasheet PDF includes multiple part numbers: FIN1027, FIN1027A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

FIN1027, FIN1027A

Manufacturer:

Fairchild Semiconductor

File Size:

689.71 KB

Description:

3.3v lvds 2-bit high speed differential driver.

Note:

This datasheet PDF includes multiple part numbers: FIN1027, FIN1027A.
Please refer to the document for exact specifications by model.
