FIN1018, FIN Datasheet - Fairchild Semiconductor

FIN1018 3.3V LVDS 1-Bit High Speed Differential Receiver

This single receiver is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The receiver translates LVDS levels, with a typical differential input threshold of 100 mV, to LVTTL signal levels. LVDS provides low EMI at ultra low power dissipation even .

FIN1018 Features

* s Greater than 400Mbs data rate s 3.3V power supply operation s 0.4ns maximum pulse skew s 2.5ns maximum propagation delay s Low power dissipation s Power-Off protection s Fail safe protection for open-circuit, shorted and terminated conditions s Meets or exceeds the TIA/EIA-644 LVDS standard s Flow

FIN-1018.pdf

This datasheet PDF includes multiple part numbers: FIN1018, FIN. Please refer to the document for exact specifications by model.

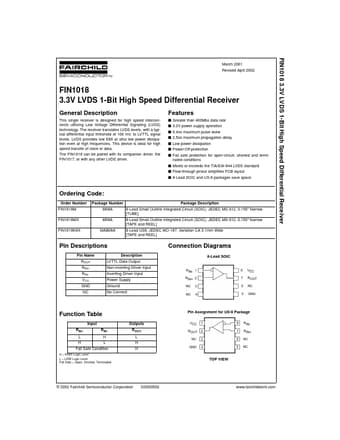

FIN1018 Datasheet Preview Page 2 FIN1018 Datasheet Preview Page 3

Datasheet Details

Part number:

FIN1018, FIN

Manufacturer:

Fairchild Semiconductor

File Size:

1.02 MB

Description:

3.3v lvds 1-bit high speed differential receiver.

Note:

This datasheet PDF includes multiple part numbers: FIN1018, FIN.
Please refer to the document for exact specifications by model.
