FPF2201 Datasheet, Switch, Fairchild Semiconductor

FPF2201 Features

  • Switch 1.8 to 5.5V Input Voltage Range Typical RDS(ON) = 140m @ VIN = 5.5V Typical RDS(ON) = 160m @ VIN = 3.3V Fixed 500mA Current Limit (min) 5% Accurate Current Limit 72 (typ) Output Dischar

PDF File Details

Part number:

FPF2201

Manufacturer:

Fairchild Semiconductor

File Size:

1.18MB

Download:

📄 Datasheet

Description:

Integrated load switch. The FPF2200-FPF2202 are low RDS(ON) P-Channel MOSFET load switches with high precision current limit value. The input voltage range o

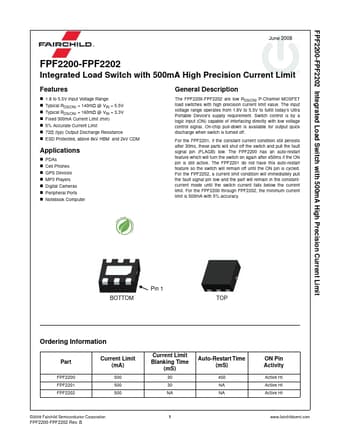

Datasheet Preview: FPF2201 📥 Download PDF (1.18MB)
Page 2 of FPF2201 Page 3 of FPF2201

FPF2201 Application

  • Applications PDAs Cell Phones GPS Devices MP3 Players Digital Cameras Peripheral Ports Notebook Computer General Description The FPF2200-FPF2202 ar
